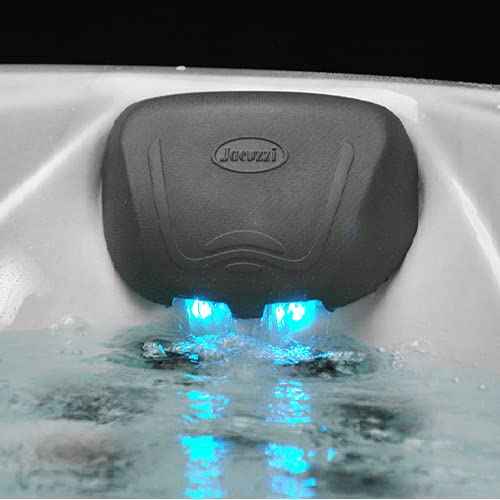

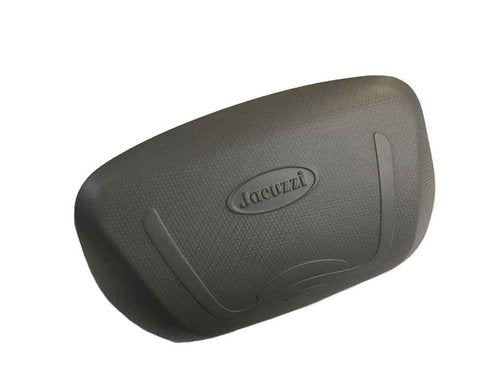

2472-136 | Jacuzzi J300™ HYDROSOOTHE™ Massage Pillow

Brand: Jacuzzi

Color: Grey

Details: The HYDROSOOTHE pillow is one complete assembly (P/N 2472-136). The foam pillow is attached between an inner and outer ring. The mounting ring has two threaded studs and bushings that slide through the spa shell. The pillow is held in place with two wing nuts on the back side of the shell, these will need to be removed to remove the pillow. To Service the Pillow, Follow these steps: 1. Remove the skirt panel located behind the HYDROSOOTHE pillow. You will notice a label is located in the area where you can find service access to the pillow 2. Carefully cut the paper and remove the foam (it is installed in large chunks instead of traditional foam fill to assist in this step) until you have adequate access to the pillow wing nuts. 3. Unscrew the wing nuts. 4. Gently pull the pillow, from the front, to remove. 5. Insert new pillow. 6. Tighten the wing nuts. 7. Replace the foam chunks and close paper. 8. Install skirt panel(s).

Package Dimensions: 12.1 x 6.5 x 4.6 inches

Part Number: 2472-136

model number: 2472-136
